Durable Baby Stroller Dynamic Durability Testing Machine

Name: Durable Baby Stroller Dynamic Durability Testing Machine
Brand: HUAKAI
Price: 3 USD

China Durable Baby Stroller Dynamic Durability Testing Machine factory

Accuracy : Test speed: 5Km/h (adjustable)

Type : Testing Machine

Application : Abrasion Tester

Effective Width : Max 1000mm

power : 1000W

Price : $3,800-6,000 / piece

MOQ : 1 piece

Accuracy Class : High Accuracy

warranty : 1 Year

Load Capacity : Max 50 lbs

Place of Origin : Guangdong, China

Protection Class : IP65

customized support : OEM, OBM

Vertical Adjustment Range : Max 450mm

Voltage : 220 V, 380 V

Brand Name : HUAKAI

Contact Now

Product Overview

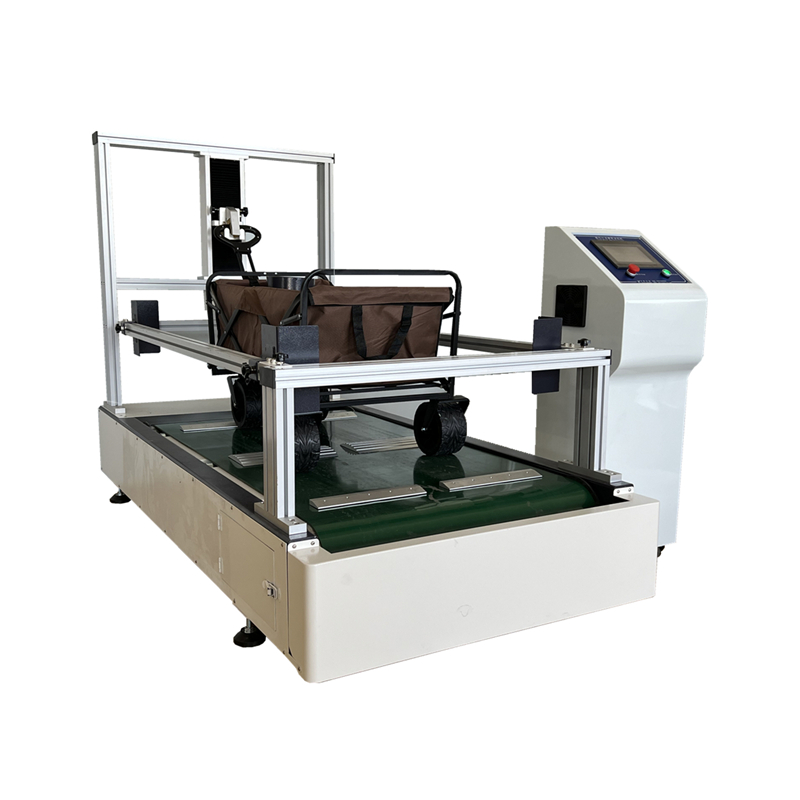

Durable Baby Stroller Dynamic Durability Testing Machine

The Baby Stroller Dynamic Durability Testing Machine is designed to evaluate the endurance and structural performance of baby strollers under simulated road conditions. It replicates real-world use by driving the stroller wheels and frame over a moving conveyor belt with built-in obstacles. This machine is an essential quality control and R&D instrument for stroller manufacturers, safety certification organizations, and testing laboratories.
Functions & Applications
* Simulates stroller movement over road-like conditions.
* Tests wheel and frame dynamic durability under repeated loads.
* Ensures compliance with international stroller safety and endurance standards.
* Widely used in stroller manufacturing, R&D, and product certification.

Product Paramenters

Item	Specification
Model	HK-602
Control Mode	Color touchscreen with user-friendly HMI operation
Cycle Counter	6-digit electronic counter, 0–999,999 cycles, auto stop at preset, power failure memory
Test Speed	5 km/h (adjustable)
Test Method	Motor-driven roller conveyor with obstacles installed as required
Height Adjustment	Max. 450 mm
Effective Width	Max. 1000 mm
Load Capacity	Max. 50 lbs
Safety Device	Automatic stop when test sample falls
Machine Dimensions	1200 × 2300 × 1900 mm (W×L×H)

Products Description

Structure & System Configuration
* Drive System: Motor-driven rollers and conveyor system.
* Obstacle Simulation: Conveyor belt equipped with customizable obstacles to simulate road surfaces.
* Control System: PLC with color touchscreen and HMI for test parameter settings.
* Safety Mechanism: Automatic shutdown when stroller sample falls off the conveyor.
* Frame Structure: Heavy-duty steel body for stability and durability.
Standards Compliance
* EN1888-2012 – Safety Requirements and Test Methods for Baby Strollers
* GB 14748-2006 – Chinese National Standard for Stroller Safety

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
