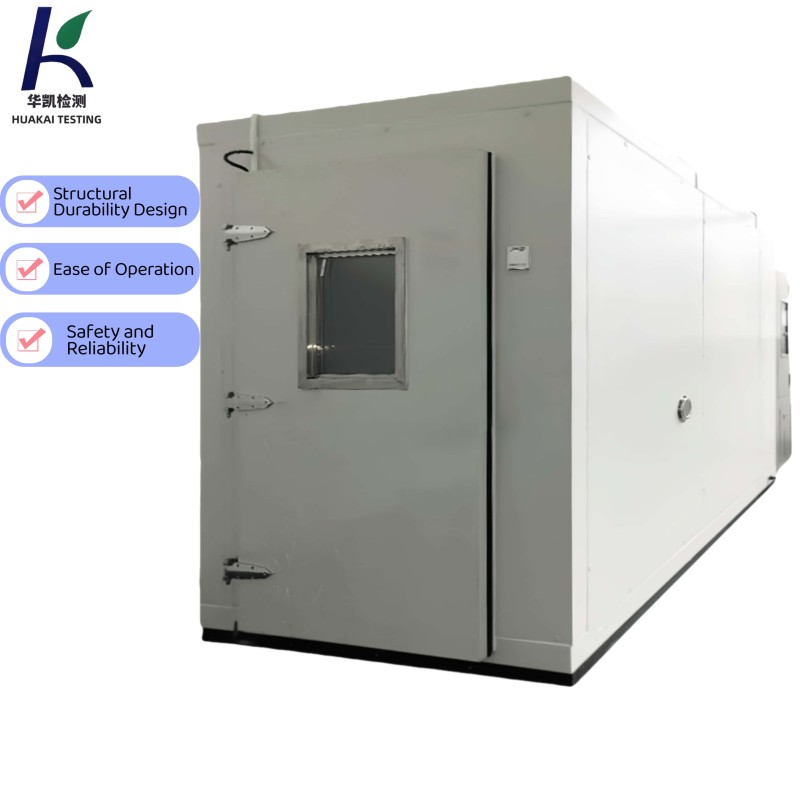

Large-Scale Double-Door Explosion-Proof Constant Temperature and Humidity Environmental Climate Simulation Test Chamber

Name: LargeScale DoubleDoor ExplosionProof Constant Temperature and Humidity Environmental Climate Simulation Test Chamber
Brand: HUAKAI
Price: 15 USD

China Large-Scale Double-Door Explosion-Proof Constant Temperature and Humidity Environmental Climate Simulation Test Chamber factory

customized support : OEM, OBM

Protection Class : IP65

Frequency : 50±0.5Hz

Air Cooling Method : High-Efficiency Plate-Type Membrane Air Heat Exchanger

Brand Name : HUAKAI

Accuracy Class : High Accuracy

Type : Testing Machine

warranty : 1 Year

MOQ : 1 piece

Price : $15,000-30,000 / piece

power : 5KW

Application : Laboratory Testing, Lab Testing

Accuracy : Temperature Range: -20~100℃

Place of Origin : Guangdong, China

Voltage : 380 V

Heating System : Adopts Heating Tubes for Heating

Contact Now

Product Overview

Large-Scale Double-Door Explosion-Proof Constant Temperature and Humidity Environmental Climate Simulation Test Chamber

The Walk-in Constant Temperature and Humidity Test Chamber is a large-scale environmental simulation equipment designed to assess the reliability and performance of materials, components, and finished products under varying climatic conditions. It provides precise temperature and humidity control, stable airflow circulation, and uniform test conditions. This chamber is widely used in electronics, automotive, aerospace, materials research, and quality control laboratories.
* Temperature range: -20°C to +100°C, humidity range: 20%RH to 95%RH.
* Equipped with intelligent PID control system and user-friendly touch screen interface.
* Stable temperature uniformity and low noise operation suitable for large test samples.
* Complies with multiple international environmental testing standards.
* Water-cooled refrigeration system for efficient and stable performance.
Functions & Application Fields
* Environmental simulation tests for electronic components and industrial materials.
* Reliability and durability testing under constant or cyclic temperature and humidity conditions.
* Applicable to automotive, aerospace, chemical, and research laboratories.
* Used for temperature cycling, high/low temperature storage, and humidity endurance tests.
* Supports R&D, production quality inspection, and certification evaluation.

Product Paramenters

Item	Specification
Internal Dimensions (L×W×H)	3000 × 2300 × 2550 mm
External Dimensions (L×W×H)	4600 × 2500 × 2750 mm
Temperature Range	-20°C ~ +100°C
Humidity Range	20% ~ 95% RH
Temperature Resolution	0.1°C
Temperature Fluctuation	±0.5°C
Temperature Uniformity	±2°C
Humidity Resolution	0.1% RH
Humidity Fluctuation	±2% RH
Humidity Uniformity	±2.5% RH
Heating Rate	0~3°C/min (average, no load)
Cooling Rate	0~1°C/min (average, no load)
Noise Level	≤65 dB
Power Supply	380V ±10%, 50Hz, 3-phase, 100A
Cooling Method	Water-cooled system with cooling tower and dual circulation
Material	Inner: SUS304 stainless steel; Outer: Cold-rolled steel with powder coating
Observation Window	Two anti-fog viewing windows (320×350 mm each)
Door Type	Double doors with silicone rubber sealing strips
Lighting	Two explosion-proof LED lamps (36V/40W)
Controller	Touch-screen LCD with PID+SSR control
Communication Interface	RS232 / RS485 port for PC data acquisition and monitoring
Safety Devices	Overheat, overload, phase loss, leakage, and water shortage protection

Products Description

Structure / System Configuration / Compliance Standards
* Air Circulation System: Forced air circulation with centrifugal fan for uniform temperature and humidity distribution.
* Heating & Cooling System: Independent heating and refrigeration circuits for efficient control.
* Humidification System: Stainless steel humidifier with RO water filter and automatic overflow protection.
* Controller: LCD touch-screen with 120 programs and 1200 segments, supporting PID control.
* Communication: RS232/RS485 interface for computer monitoring and data recording.
* Safety Protection: Overheat, compressor overload, pressure, water shortage, and emergency stop protection.
Compliance Standards: GB10589-2008, GB10592-2008, GB10586-2006, GB11158-2008, GB/T5170.2-2008, GB/T5170.5-2016, GB2423.22-2012,
GB2423.1-2008, GB2423.2-2008, GB2423.3-2016, GB2423.4-2008.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
