Double-Wing Luggage Drop Impact Durability Testing Machine; Luggage Drop Testing Machine

Name: DoubleWing Luggage Drop Impact Durability Testing Machine Luggage Drop Testing Machine
Brand: HUAKAI
Price: 2 USD

China Double-Wing Luggage Drop Impact Durability Testing Machine; Luggage Drop Testing Machine factory

Application : Drop Testing

Overall Dimensions : 1400*1200*2140mm

Accuracy : Drop height: 450~1500mm

Type : Testing Machine

warranty : 1 Year

Frequency : 50Hz

Place of Origin : Guangdong, China

Protection Class : IP65

Price : $2,000-3,800 / piece

Accuracy Class : High Accuracy

Voltage : 220 V

Brand Name : HUAKAI

power : 750W

MOQ : 1 piece

customized support : OEM, OBM

Contact Now

Product Overview

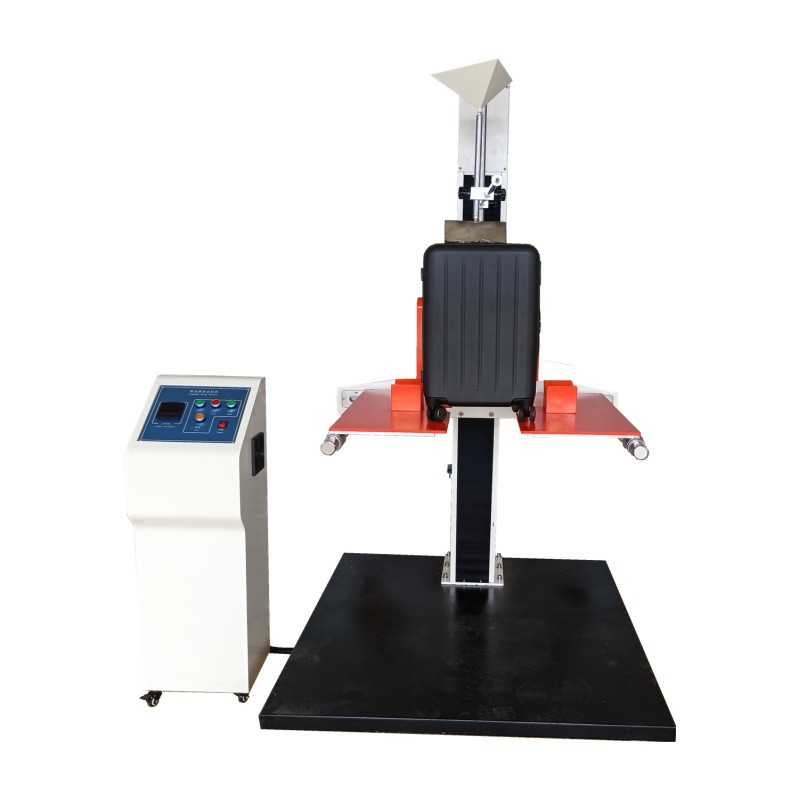

Double-Wing Luggage Drop Impact Durability Testing Machine; Luggage Drop Testing Machine

The Luggage Drop Testing Machine is designed to evaluate the durability and protective performance of suitcases, travel bags, and other luggage products during transportation and handling. It adopts a double-column guide system, spring shock absorption, and a height scale indicator, ensuring stable and reliable operation.
Equipped with a special luggage drop fixture, the tester can perform edge, surface, and corner drop tests. By simulating drops that may occur during handling or shipping, manufacturers can identify potential product weaknesses and improve design to minimize transit damage.
Functions & Applications
* Simulates drops from various angles: edges, surfaces, and corners.
* Evaluates the structural integrity and protection performance of luggage under impact.
* Ensures product reliability during handling, transportation, and storage.
* Widely applied in luggage manufacturing, packaging, quality control, and product R&D laboratories.

Product Paramenters

Item	Specification
Model	HK-516
Drop Height	450 – 1500 mm
Display Mode	Height scale indicator
Max. Specimen Weight	60 kg
Max. Specimen Size (L×W×H)	800 × 1000 × 800 mm
Drop Panel Size (W×L)	1200 × 1400 mm
Single Wing Area (W×L)	350 × 760 mm
Power Supply	AC 220V, 50Hz, Single Phase, 1/2 HP
Weight	Approx. 420 kg
Machine Dimensions (L×W×H)	1400 × 1200 × 2140 mm

Products Description

Structure & System Configuration
* Double-column guide system ensures vertical alignment and test accuracy.
* Spring buffer system provides reliable shock absorption during operation.
* Luggage drop fixture allows for precise edge, face, and corner drop testing.
* Height scale indicator for easy and accurate test height adjustment.
Standards Compliance
* QB/T 2921-2018 – Luggage Drop Test Method
* QB/T 2155-2018 – Travel Luggage Standard

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
